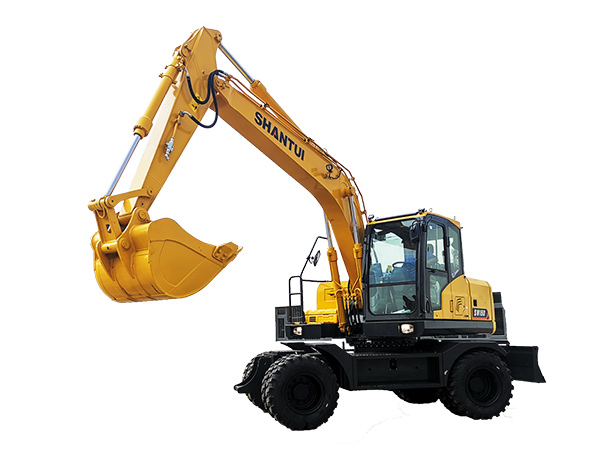

SW150
High-end system configuration
The King of City Road Transitions
Spacious and comfortable operating environment
Quick and easy maintenance -
Reinforced working device
● Completely optimize the design of structural parts, strengthen the treatment of key stress positions, and not be afraid of harsh working conditions.
● Bucket bottom plate, side plate and reinforcement plate are all made of high-strength wear-resistant materials to improve bucket durability.
● Multi-specification boom, stick and bucket can be easily combined to adapt to various working conditions. -
high-end system configuration
● International leading high adaptability turbocharged engine.
● World-class hydraulic configuration, high working pressure and small pressure loss. -
Spacious and comfortable operating environment
● Fully injection-molded interior, the interior color is effectively matched according to ergonomics, and it is not easy to cause the operator’s visual fatigue.
● Large space, wide field of vision, reasonable arrangement of control devices, convenient and comfortable operation.
● High-power air conditioner, suspension seat, comfortable driving. -
High-end drivetrain
● German ZF gearbox, world-class technology.
● German ZF front and rear axles are exclusively used in wheel excavation projects, with stable and reliable quality. -
Intelligent electronic control, optimal power control
● Intelligent control system realizes the best matching of power system and hydraulic system, improves work efficiency and reduces fuel consumption.
● A new generation of human-machine-friendly intelligent electronic control system allows you to control the working state of your machine.
● Preset four working modes: P (heavy load mode), E (economic mode), A (automatic mode), B (broken hammer mode), easy to switch.
● Through the cloud platform, you can view the vehicle’s position, running track, working status and other related information at any time. -
Fast and convenient maintenance
● The hood that opens backwards is easy to open and has a large opening angle, which is convenient for maintenance.
● The oil filter element is far away from the right door, which is convenient for maintenance.
● High-precision fuel filter element is centrally arranged at the left door, which is convenient for maintenance.
● Coolant filling and air filter replacement are within easy reach.
● Parallel radiator, effectively avoid overheating, easy to clean. -
optional configuration of the whole machine
Fuel Filling Pump
Cab Warning Light
Cab Top Light
Rear Camera
Cab Top Protection Net
Cab Front Upper Protection Net
Cab Front Lower Protection Net
Narrow Bucket -
optional accessories
Breaker, ripper, wood grab, stone grab, quick-change device, hydraulic ram, breaker pipeline
| Machine List Page Data Arrangement Table | |
| product name | SW150-9W1 |
| Contrast | SW150-9W1 (standard version) |
| Dimensions | |
| Overall length (mm) | 10240 |
| Grounding length (when transported) (mm) | 7960 |
| Overall height (to the top of the boom) (mm) | 3385 |
| Overall width (mm) | 2528 |
| Overall height (to the top of the cab) (mm) | 3220 |
| Counterweight ground clearance (mm) | 1285 |
| Minimum ground clearance (mm) | 396 |
| Tail turning radius (mm) | 2528 |
| Wheelbase (mm) | 2800 |
| Wheel base (mm) | 1948 |
| Tire diameter (mm) | 1050 |
| Rotary platform width (mm) | 2490 |
| Distance from the center of rotation to the rear end (mm) | 2528 |
| The scope of work | |
| Maximum excavation height (mm) | 8755 |
| Maximum unloading height (mm) | 6340 |
| Maximum excavation depth (mm) | 4715 |
| Maximum vertical excavation depth (mm) | 3815 |
| Maximum excavation distance (mm) | 7950 |
| Maximum excavation distance at ground level (mm) | 7730 |
| Minimum turning radius of working device (mm) | 2365 |
| Maximum lifting height of bulldozer (mm) | 565 |
| Bulldozer maximum cutting depth (mm) | 100 |
| engine | |
| model | WP4.6N |
| form | High pressure common rail water-cooled inline 4-cylinder turbo |
| Displacement (L) | 4.56 |
| Rated power (kW/pm) | 129/2200 |
| Hydraulic system | |
| Hydraulic pump form | Variable Double Piston Pump |
| Rated working flow (L/min) | 2×160 |
| bucket | |
| Bucket capacity (m3) | 0.45~0.7(0.58) |
| Slewing system | |
| Maximum rotation speed (r/min) | 11.3 |
| brake type | Pressure release mechanical brake |
| Digging force | |
| Stick Digging Force (KN) | 72 |
| Bucket Digging Force (KN) | 102.5 |
| Operating quality and ground pressure | |
| Operating Weight (Kg) | 13500 |
| Ground specific pressure (KPa) | —— |
| walking system | |
| travel motor | High-speed inclined axis variable motor |
| Walking speed (km/h) | 10/38 |
| Traction (kN) | 78 |
| Gradeability | 70% (35°) |
| Fuel tank capacity | |
| Fuel tank capacity (L) | 240 |
| Cooling system (L) | 20 |
| Engine oil quantity (L) | 20 |
| Hydraulic Tank/System Capacity (L) | 111/150 |
