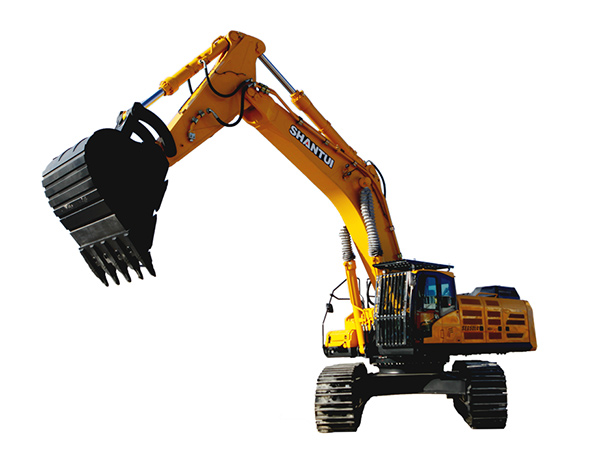

SE650
- Selling point
- Reinforced working device
- high-end system configuration
- Spacious and comfortable operating environment
- four wheels
- Intelligent electronic control, optimal power control
- Fast and convenient maintenance
- optional configuration of the whole machine
- optional accessories
-
Selling point
1. Power hydraulic high-end configuration
2. Special for mines, reinforced structural parts
3. Special technology for crushing, lower fuel consumption
4. Large-space cab, high-power air conditioner, comfortable operating environment
5. Optional automatic centralized lubrication system, fast and convenient maintenance -
Reinforced working device
● The structure of forgings at key positions of boom and stick is suitable for the harsh environment of mines.
● The bottom plate, side plate and reinforcing plate of the bucket are made of high-strength wear-resistant material, and the bucket is made of wear-resistant material to improve the durability of the bucket. -
high-end system configuration
● International leading high adaptability turbocharged engine, high torque and high power.
● High-end hydraulic system configuration, semi-electrically controlled hydraulic system, better maneuverability. -
Spacious and comfortable operating environment
● Large space, high-power air conditioner, wide field of vision, reasonable arrangement of control devices, convenient and comfortable operation.
● High-power air conditioner, suspension seat, comfortable driving.
● Better user-friendly smart touch screen integrating bluetooth, air conditioner and other functions. -
four wheels
● Mine-type four-wheel area, reinforced key positions and double-supported sprockets, better adapt to mining conditions.
● The chassis is thickened with upper and lower X-plates, and full protective rail chain guards. -
Intelligent electronic control, optimal power control
● Precise control matching technology to achieve the best matching of power system and hydraulic system, improve work efficiency and reduce fuel consumption.
● A new generation of intelligent electronic control system realizes digital sharing of machine information.
● Through the cloud platform detection system, you can check the location, operation status, working time, and fuel consumption of the vehicle at any time.
● The crushing mode is automatically entered with one key, and the mode power segment control technology is adopted to reduce the fuel consumption. -
Fast and convenient maintenance
● Large maintenance space, convenient maintenance.
● Maintenance channel design, high concentration of maintenance parts
● Coolant filling and air filter replacement are within easy reach.
● The radiator drive fan reverse function, clean the radiator dust. -
optional configuration of the whole machine
Fully automatic centralized lubrication system cab warning light cab dome light 360° Camera cab top protective net cab front upper protective net cab front lower protective net.
-
optional accessories
Scarifier, breaker, steel arm
| Machine List Page Data Arrangement Table | |
| product name | SE650LC |
| Contrast | SE650LC (standard version) |
| Dimensions | |
| Overall length (mm) | 12245 |
| Grounding length (when transported) (mm) | 7510 |
| Overall height (to the top of the boom) (mm) | 4750 |
| Overall width (mm) | 3735 |
| Overall height (to the top of the cab) (mm) | 3530 |
| Counterweight ground clearance (mm) | 1370 |
| Minimum ground clearance (mm) | 587 |
| Tail turning radius (mm) | 4145 |
| Track length (mm) | 5710 |
| Gauge (mm) | 2900 |
| Track width (mm) | 3500 |
| Track shoe width (mm) | 600 |
| Rotary platform width (mm) | 3433 |
| Distance from the center of rotation to the rear end (mm) | 4055 |
| The scope of work | |
| Maximum excavation height (mm) | 10855 |
| Maximum unloading height (mm) | 7015 |
| Maximum excavation depth (mm) | 7040 |
| Maximum vertical excavation depth (mm) | 6195 |
| Maximum excavation distance (mm) | 11520 |
| Maximum excavation distance at ground level (mm) | 11270 |
| Minimum turning radius of working device (mm) | 5000 |
| Maximum lifting height of bulldozer (mm) | —— |
| Bulldozer maximum cutting depth (mm) | —— |
| engine | |
| model | GB3-6WG1X |
| form | Direct injection, 6 cylinders4-stroke, turbocharged, intercooled, water-cooled |
| Displacement (L) | 15.681 |
| Rated power (kW/pm) | 377/1800 |
| Hydraulic system | |
| Hydraulic pump form | Variable Double Piston Pump |
| Rated working flow (L/min) | 2×500 |
| bucket | |
| Bucket capacity (m3) | 3.6~4.5 |
| Slewing system | |
| Maximum rotation speed (r/min) | 7 |
| brake type | Pressure release mechanical brake |
| Digging force | |
| Stick Digging Force (KN) | 365 |
| Bucket Digging Force (KN) | 420 |
| Operating quality and ground pressure | |
| Operating Weight (Kg) | 64500 |
| Ground specific pressure (KPa) | 102 |
| walking system | |
| travel motor | Axial variable piston motor |
| Walking speed (km/h) | 3.2/4.9 |
| Traction (kN) | 475 |
| Gradeability | 70% (35°) |
| Fuel tank capacity | |
| Fuel tank capacity (L) | 900 |
| Cooling system (L) | 76 |
| Engine oil quantity (L) | 52 |
| Hydraulic Tank/System Capacity (L) | 575/630 |
