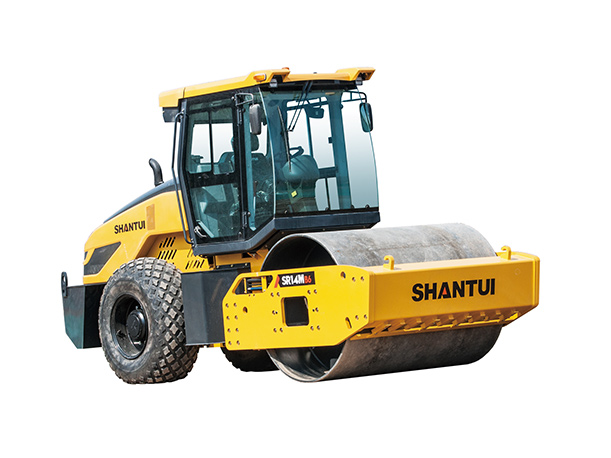

SR14M
- Product features
- High Safety and Comfort
- High Flexibility and Usability
- Working Performance
- Operating Cost
-
Product features
Overall weight: 14000kg
Engine: Weichai 103kW/1800rpm
Compacting width: 2130mm -
High Safety and Comfort
● The whole machine adopts three-level shock absorption, special sealing, low vibration and low noise;
● The cab dashboard, seat and control box are arranged in combination with ergonomics for comfortable operation;
● Fully hydraulic drive, four-speed stepless speed change, simple operation. -
High Flexibility and Usability
● The fuel filter element and hydraulic filter element are arranged on the same side of the machine, which is easy to maintain;
● Easy maintenance, daily maintenance can be done conveniently by opening the hood;
● The pipes for draining water from the water tank and draining oil from the oil pan are led to the outside of the machine body for easy maintenance;
● Intelligent combination instrument with automatic fault detection function, with all-weather, all-round fault diagnosis and alarm system. -
Working Performance
● Weichai WP6 engine has good fuel economy, strong parts versatility and low maintenance cost;
● Suction-type large-area radiator, effectively extending the service life of the engine and hydraulic components;
● Shantui’s proprietary technology steel wheels, bearing independent lubrication, long life. -
Operating Cost
● Exclusive matching technology can achieve high work efficiency and reasonable fuel economy, and comprehensive fuel consumption can be reduced by 8%~10%;
● Imported core electric hydraulic components, high quality and reliability, reducing downtime.
| Parameter name | SR14M-B6 |
| Performance parameters | |
| Operating weight (Kg) | 14000 |
| Exciting force (KN) | 236/125 |
| Vibration frequency (Hz) | 30 |
| Nominal amplitude (mm) | 2.0/1.0 |
| Gradeability (%) | 30 |
| Engine | |
| Engine model | SHANGCHAI SC4H |
| Rated power/rated speed (kW/rpm) | 103/2000 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 5950*2305*3250 |
| Driving performance | |
| Forward speed (km/h) | 2.8/5.1/11 |
| Reversing speed (km/h) | 2.8/5.1 |
| Chassis System | |
| Wheelbase (mm) | 3046 |
| Tank capacity | |
| Fuel tank (L) | 330 |
| Working device | |
| Compacting width(mm) | 2130 |
